Download LL1660 datasheet: Download PDF

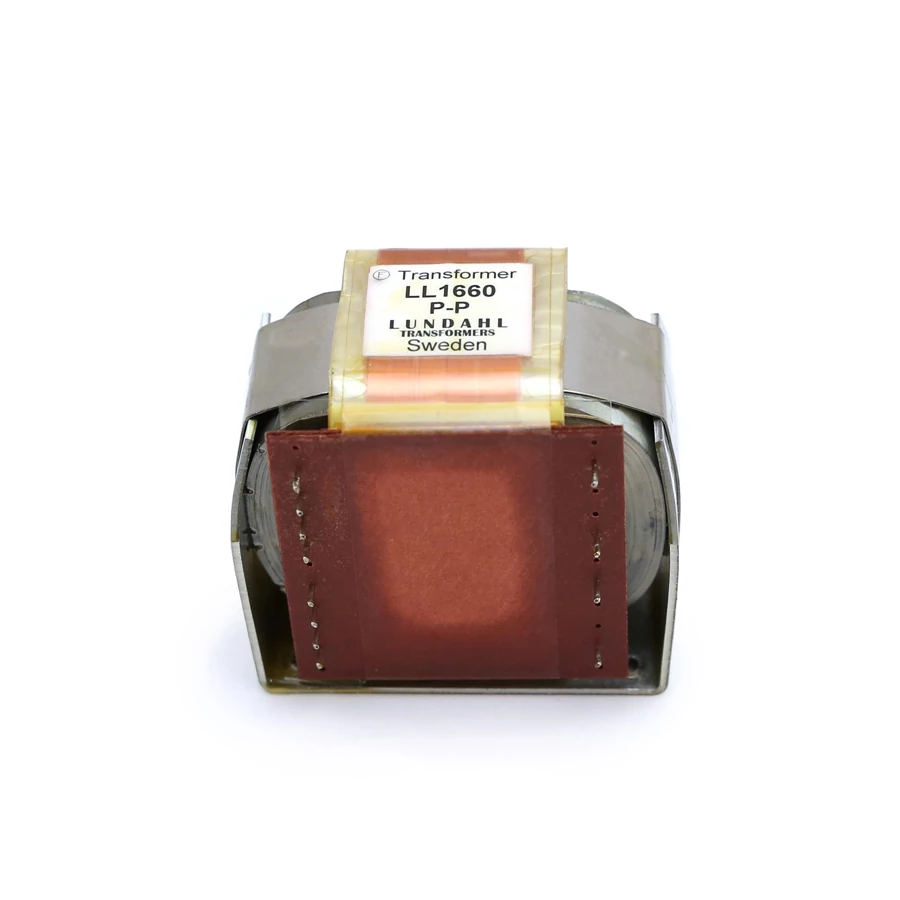

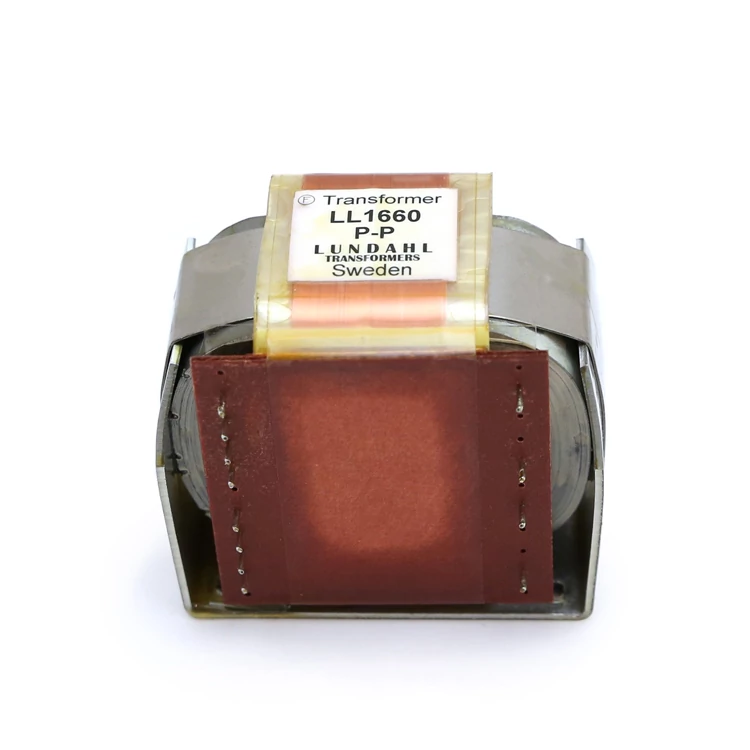

Amorph core Interstage Transformer / Line Output Transformer LL1660 LL1660 is an interstage / line output transformer for tube amplifiers.
Paraméterek
| Parameters | |
| Dimensions (Max. Length x Width x Height above PCB (mm)) | 56 X 53 X 61 |
| Weight | 0,75kg |
| Turns ratio | 1+1+1+1:2.25+2.25 |
| Static resistance winding A | 315Ω |
| Static resistance winding B | 240Ω |
| Static resistance winding C | 625Ω |
| Max. current through any single section | 50 mA |
| Isolation between primary and secondary windings / between windings and core | 4 kV / 2 kV |
